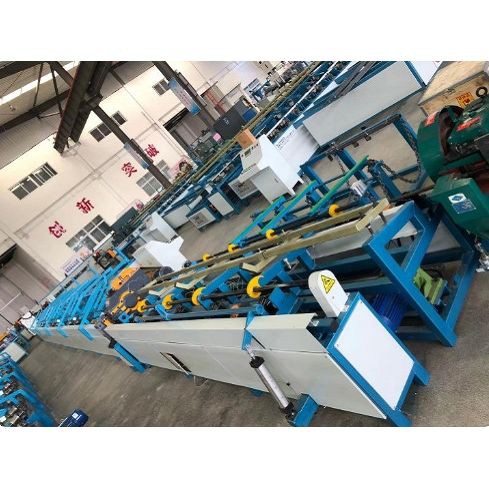

Rock Anchor Bolt Design and Production Line Equipments

An automated anchor bolt shearing production line includes a feeding section, a conveying section, a shearing section, and an unloading section. The feeding section includes a feeding bracket and a conveying frame body, and the anchor rod is moved to the feeding plate through a distributor on the feeding bracket. The conveying section includes a positioning V-shaped wheel, a conveying frame body, a double row chain group, a conveying motor, and an anti vibration positioning plate. The anchor rod is transported to the shearing section through the conveying section, and the shearing section is composed of a GQ shearing machine. The unloading section is composed of an unloading frame, a unloading push plate, an unloading cylinder, a fixed length hinge plate, a fixed length sensor, a guiding flat wheel, and a friction wheel. The unloading cylinder, a fixed length hinge plate, and a fixed length sensor are three parts. Linkage effect, the fixed length sensor is connected to the PLC electrical control part inside the wind power control box through a cable, and the fixed length of the finished product is achieved through linkage. Using an automated anchor rod shearing production line described in the present invention not only reduces the investment in anchor rod shearing production, but also improves production efficiency collect
